 | Simplifies Machine Setup |
| Reduces Costly Downtime |
| Eliminates Setup Errors |
| Automated Workpiece Inspection |
Measurement Software:
| Measure single points in any axis |
| Measure an O.D. or I.D. in any axis |
| Measure holes and bosses |
| Find O.D. and I.D. corners |
| Check straightness in any axis and rotate part coordinates |
| Print out measured results |
Tool setting software:
| Measure length and diameter for a single tool or a series of tools |
| Measure and set tool offsets for lathes The software includes a complete users manual describing each routine and where all data is stored in macro variables |
Laser Applications

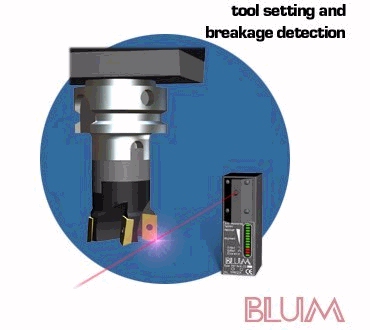

| Tool Breakage Detection By passing a tool through the beam at a high feedrate, the tool can be checked for breakage with minimal effect on cycle time. |
| Multiple Cutting Edge Check The entire edge of each insert or flute can be measured for damage. Even odd shaped tools such as ball end mills, beveled cutters and form tools can be checked. |
| Measuring of Length and Radius A Reference Pin B Flight Circle (runout) C Centric tools, ie: twist drills, tap drills D Eccentric tools, ie: milling cutters E Indexable insert cutters F Preferred measuring position (beam center) G Measuring position for tool radius H Measuring position for tool length I Position to check cutting edge |
|
|
